Commercial roof damage assessment is the formal process of identifying, measuring, and documenting roof defects to determine repair scope and support insurance claims. The industry term for this process is a commercial roof damage evaluation, and it combines visual inspection, advanced diagnostics, and structured reporting. Understanding how commercial roof damage assessed correctly can mean the difference between a fully paid claim and a denial. Commercial roof claims average $22,000 to $68,000, and the quality of your documentation directly shapes that outcome.

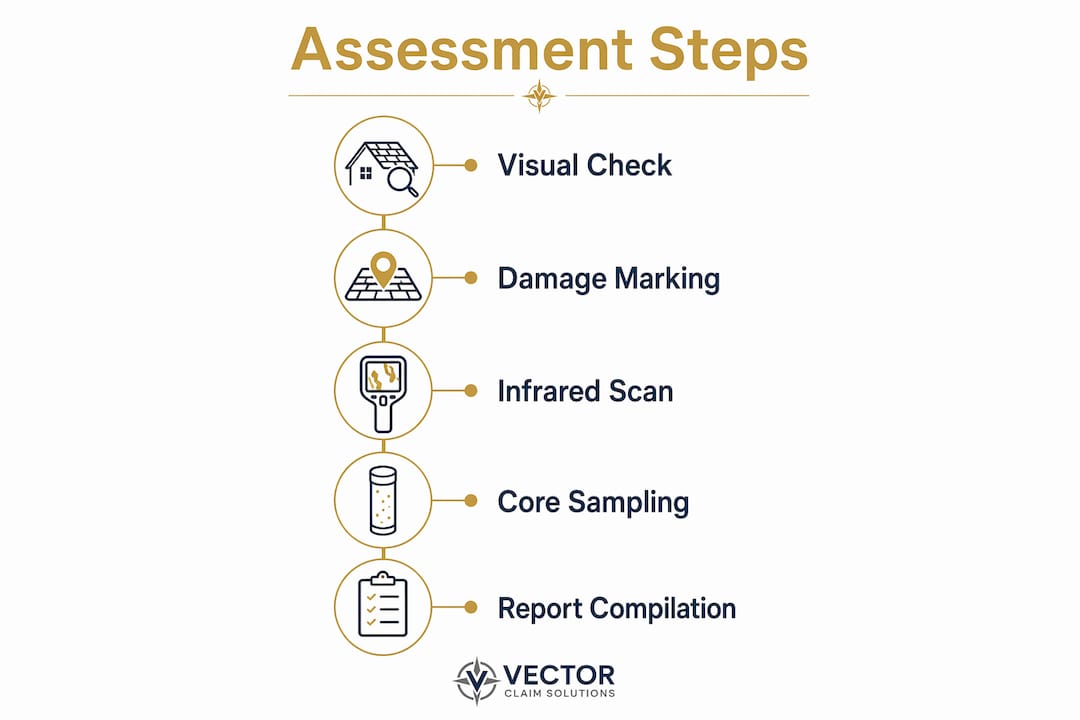

How is commercial roof damage assessed step by step?
A commercial roof damage evaluation follows a systematic sequence. Inspectors begin at the roof access point and work outward in a grid pattern, covering every section before moving to the next. This method prevents missed areas and creates a defensible inspection record.
During the walkthrough, inspectors look for specific physical indicators of damage and deterioration:
- Membrane issues: Blistering, bubbling, splitting, or lifted seams on TPO, EPDM, or modified bitumen systems
- Surface punctures and cracks: Often caused by hail, foot traffic, or falling debris
- Water pooling: Standing water after 48 hours signals drainage failure or structural deflection
- Flashing condition: Loose, corroded, or separated flashing at walls, curbs, and penetrations allows water infiltration
- Structural indicators: Sagging deck sections, soft spots underfoot, or visible movement suggest compromised decking
Each finding is assigned a severity rating, typically on a scale from minor to critical, and tied to a specific location on the roof diagram. Photographic evidence keyed to roof maps and condition ratings is the foundation of any credible insurance report. Without that spatial link, adjusters cannot verify where damage occurred or how widespread it is.
Pro Tip: Bring a measuring tape and a chalk line to your inspection. Marking damage boundaries on the roof surface before photographing gives adjusters a clear spatial reference and reduces back-and-forth during claim review.
Do advanced diagnostics improve roof damage evaluation?
Visual inspections identify surface damage, but they miss what is happening beneath the membrane. Two diagnostic methods fill that gap: infrared moisture scanning and core sampling.
Infrared moisture scanning
Infrared scanning identifies trapped moisture across the roof surface without cutting into the membrane. The technology detects temperature differentials caused by wet insulation retaining heat longer than dry material. This makes it a non-destructive first pass that maps problem zones before any physical sampling begins. It also guides where core samples should be taken, which reduces the number of cuts needed and lowers overall diagnostic costs.
Core sampling
Core sampling reveals insulation saturation and membrane adhesion failures that no visual check can confirm. The process requires removing 3 to 5 samples per roof section, each roughly 4 inches in diameter. Lab analysis of those samples provides definitive proof of internal roof condition, which is exactly what insurers require when disputing hidden damage claims.
Here is a cost comparison for each diagnostic method:
| Method | Cost Range | What It Detects |
|---|---|---|
| Visual inspection | $0.03–$0.10 per sq ft | Surface defects, drainage issues, flashing gaps |
| Infrared scanning | $0.05–$0.15 per sq ft | Subsurface moisture, wet insulation zones |
| Core sampling | $150–$300 per sample | Insulation saturation, membrane adhesion failure |
These inspection cost ranges reflect industry averages and vary by roof size and region. Spending on diagnostics upfront typically prevents far larger disputes during the claims process.
Pro Tip: Schedule infrared scanning in the evening or early morning. Temperature contrast between wet and dry insulation is sharpest when ambient temperatures are dropping, which produces clearer thermal images and more accurate moisture mapping.
What documentation standards support a strong roof damage claim?
A “find it, measure it, document it” approach is the standard that insurance adjusters rely on when evaluating commercial roof claims. Vague descriptions and unanchored photos are the most common reasons claims get reduced or disputed. Precise documentation removes that ambiguity.
Follow this sequence to build an insurer-ready report:
- Photograph every defect with a scale reference. Place a ruler, tape measure, or coin next to damage before shooting. This gives adjusters a physical size reference they can verify independently.
- Timestamp all photos. Camera metadata alone is not enough. Use a date-stamped placard in the frame for photos that will appear in formal reports.
- Quantify damage in recognized units. Use linear feet for flashing separations, square feet for membrane damage zones, and individual counts for punctures or hail strikes.
- Apply the test square method. The 10×10-foot test square is a standardized insurance industry practice where adjusters count hail impacts per 100 square feet to determine whether replacement thresholds are met. Aligning your documentation to this format speeds adjuster review.
- Attach findings to a roof diagram. Every photo and measurement should reference a labeled zone on a scaled roof plan. This creates a spatial record that holds up under scrutiny.
“Insurance adjusters rely heavily on test square counts and photographic scale references, so aligning inspection documentation with these standards is crucial.” — Roof Storm Damage: Assessment & Insurance Claims 2026
Maintaining past inspection records matters just as much as the current report. Adjusters compare pre-loss and post-loss condition to determine whether damage is storm-related or the result of deferred maintenance. Without that comparison baseline, your claim is harder to defend. For guidance on building that paper trail, the essential documents for hail damage claims resource from Vectorclaimsolutions covers what to collect and how to organize it.
How often should commercial roof inspections occur?
Biannual inspections, ideally in spring and fall, are required by most insurers to maintain warranty coverage and support storm damage claims. Spring inspections catch winter damage before it worsens through summer heat cycles. Fall inspections identify vulnerabilities before freeze-thaw stress begins.
Beyond the scheduled cadence, certain events require immediate inspection:
- After any severe weather event: Hail, high winds, or heavy snow loads can cause damage that is not visible from the ground
- After rooftop equipment installation or repair: Contractor foot traffic is a leading cause of membrane punctures
- After a reported interior leak: Water entry points on commercial roofs rarely align directly above the interior wet spot
The financial case for consistent inspections is clear. Every $500 semi-annual inspection prevents approximately $4,000 in accelerated repairs, and unchecked leaks cause $8,000 to $22,000 in interior damage. That is roughly an 8:1 return on inspection investment before any insurance consideration.
Insurers deny or reduce claims on roofs without documented inspections in the previous 24 months, citing deferred maintenance as justification. Skipping inspections does not just risk physical damage. It hands the carrier a documented reason to reduce your settlement.
Common mistakes that weaken commercial roof damage claims
Most claim problems are preventable. The errors that most consistently reduce settlements fall into a few clear categories.
Cleaning up before the adjuster arrives is the most damaging mistake a property owner can make. Debris and granules are physical evidence of storm impact. Removing them before documentation eliminates proof that cannot be recreated. Photograph everything in place, including debris patterns, granule accumulation in gutters, and displaced flashing, before any cleanup begins.
Confusing wear with storm damage weakens your position with the carrier. Routine aging, such as surface oxidation, minor cracking from thermal cycling, or gradual granule loss, does not qualify as storm damage under most policies. IIBEC-certified inspectors use forensic methods to distinguish storm-caused defects from age-related deterioration. Their reports carry significantly more weight with adjusters than a general contractor’s opinion.
Additional practices that protect your claim:
- Attend every inspection in person. Your presence allows you to point out damage that an inspector might miss and to ask questions in real time.
- Request a written report from every inspection, even routine ones. Verbal findings are not defensible.
- Compare current findings against your last inspection report. Documented change over time is the clearest evidence of a covered loss event.
Pro Tip: Ask your inspector to note the condition of every roof penetration, including HVAC curbs, pipe boots, and skylights. These are the most common entry points for water and are frequently overlooked in standard walkthroughs.
For a broader look at how storm damage types affect repair scope, understanding the distinction between wind, hail, and water damage helps you frame your claim accurately from the start.
Key takeaways
Accurate commercial roof damage assessment requires combining visual inspection, advanced diagnostics, and insurer-aligned documentation to build a defensible claim record.
| Point | Details |
|---|---|
| Follow a systematic inspection sequence | Work in a grid pattern from the access point, rating each defect by severity and location. |
| Use infrared scanning before core sampling | IR scanning maps moisture zones non-destructively, guiding where to cut for core samples. |
| Document to adjuster standards | Use test squares, scale references, timestamps, and roof diagrams to align with insurer review processes. |
| Inspect biannually and after storms | Documented inspection history within 24 months is required to avoid claim denials based on deferred maintenance. |
| Never clean up before documentation | Debris and granules are physical evidence. Photograph everything in place before any removal begins. |
What i’ve learned about roof assessments and claim outcomes
After working through hundreds of commercial roof claims across Nebraska, Iowa, Colorado, Texas, and Florida, one pattern stands out clearly. The claims that settle well are almost never the ones with the most dramatic damage. They are the ones with the most organized documentation.
Property owners who treat biannual inspections as a routine operating expense, rather than an optional line item, consistently come to the claims process with something invaluable: a before-and-after record. That record is what separates a covered storm loss from a carrier argument about deferred maintenance. Without it, even legitimate damage becomes a negotiation.
The other thing I would emphasize is the value of hiring IIBEC-certified inspectors for any claim involving significant dollar amounts. A general contractor can identify visible damage, but a forensic inspector can prove causation. That distinction matters enormously when a carrier’s adjuster is looking for reasons to apply depreciation or exclude damage as pre-existing.
My honest advice: document even the minor defects you find during routine inspections. A small membrane crack noted in a spring report becomes powerful context if a hailstorm hits in July. It shows the roof was in known, manageable condition before the loss event. That context protects your claim.
View the assessment process as risk management, not just a claims formality. The data you collect today is the defense you have tomorrow.
— Vector
How Vectorclaimsolutions supports commercial roof claims
If you are managing a commercial roof claim and are not confident your damage was fully captured, Vectorclaimsolutions can help. We specialize in commercial property storm claims across Nebraska, Iowa, Colorado, Texas, and Florida, with a focus on documentation, adjuster negotiation, and identifying damage that initial inspections missed.
Our team reviews existing claim scopes, identifies gaps in documentation, and works directly with carriers to correct underpaid or improperly scoped settlements. Whether you are preparing for an adjuster visit or responding to a low initial offer, understanding how adjusters evaluate storm damage is the first step toward a stronger outcome. Contact Vectorclaimsolutions for a claim review before you accept a settlement that may not reflect the full scope of your loss.
FAQ
What does a commercial roof damage assessment include?
A commercial roof damage assessment includes a visual walkthrough, photographic documentation, drainage and flashing inspection, and advanced diagnostics like infrared scanning or core sampling. Findings are recorded in a formal report tied to a roof diagram with severity ratings.
How do insurance adjusters measure hail damage on commercial roofs?
Insurance adjusters use the 10×10-foot test square method to count hail impacts per 100 square feet. This standardized count determines whether damage density meets the threshold for roof replacement under the policy.
Can a claim be denied due to lack of inspection records?
Yes. Insurers deny or reduce claims when roofs lack documented inspections within the previous 24 months, citing deferred maintenance as a basis for depreciation or denial.
How often should a commercial roof be professionally inspected?
Commercial roofs should be inspected twice per year, ideally in spring and fall, plus immediately after any severe weather event. This schedule satisfies most insurer requirements and supports warranty compliance.
What is the difference between storm damage and normal wear on a commercial roof?
Storm damage results from a specific weather event and shows impact patterns, directional debris, or sudden membrane failure. Normal wear develops gradually through thermal cycling, UV exposure, and aging. IIBEC-certified forensic inspectors use physical evidence and weather data to distinguish between the two in formal reports.
